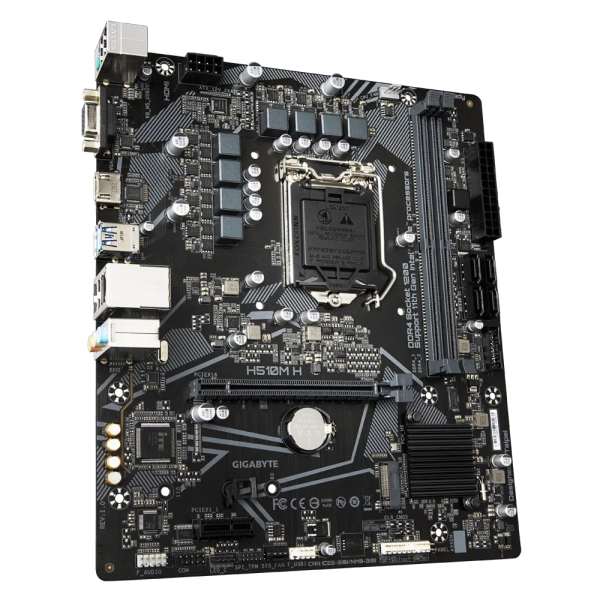

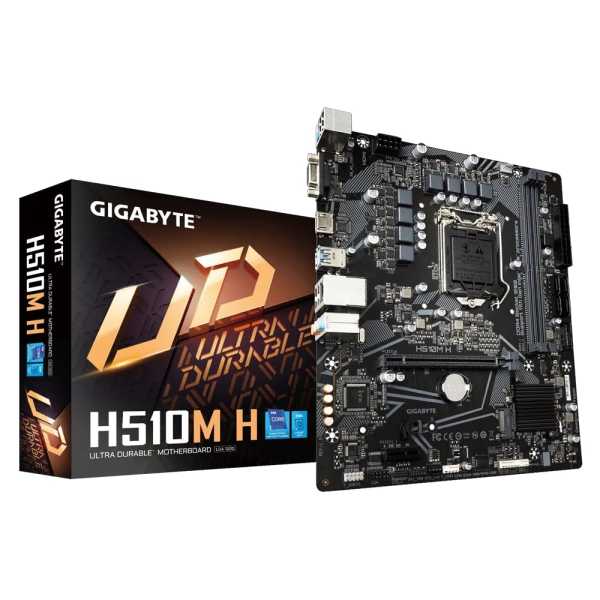

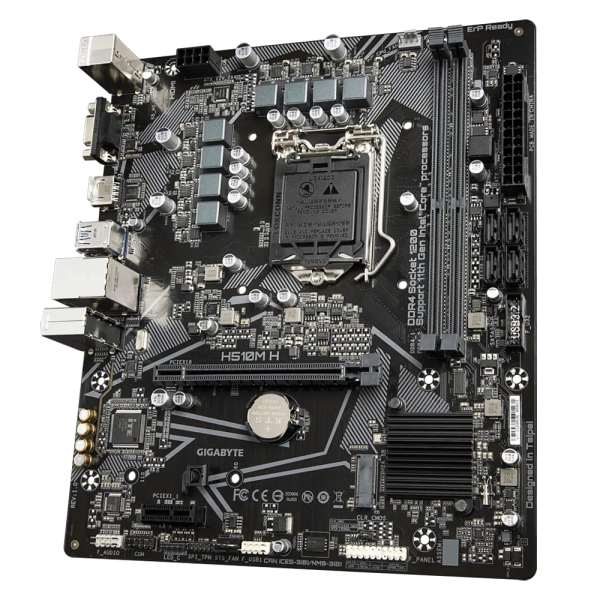

مادربرد گیگابایت مدل H510M H

Motherboard Gigabyte H510M H
74 بازدید
ناموجود
درباره محصول
مشخصات کلی
  • مدل: Motherboard Gigabyte H510M H
مشخصات فیزیکی
  • ابعاد:
مادربرد گیگابایت مدل H510M H
مادربرد گیگابایت مدل H510M H

مشخصات کلی

  • رنگ: مشکی
  • فرم فاکتور: microATX
  • گارانتی: آواژنگ

پردازنده و چیپ ست

  • تعداد سوکت پردازنده: یک عدد
  • نوع سوکت پردازنده: Intel LGA 1200
  • پردازنده های پشتیبانی شده: 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors Limited to processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 family L3 cache varies with CPU
  • برد تغذیه: 8 فاز

حافظه رم

  • تعداد اسلات حافظه: دو عدد
  • پیکربندی حافظه: دو کاناله
  • حداکثر حافظه پشتیبانی شده: 64 گیگابایت
  • استانداردهای حافظه: DDR4 3200/3000/2933/2666/2400/2133 مگاهرتز
  • توضیحات حافظه: 1th Generation IntelCore i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules ۲ اسلات DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
  • نوع حافظه: DDR4

کارت گرافیک

  • اسلات PCI Express x16: یک عدد
  • تعداد مسیرهای PCI Express: 16 مسیر
  • نوع تخصیص مسیر: ۱ مسیر PCIe 4.0/3.0 x16 slot
  • سایر توضیحات کارت گرافیک: ۱ عدد D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz ۱ عدد HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

اتصالات داخلی

  • اسلات PCI Express x1: یک عدد
  • کانکتور SATA 3.0: چهار عدد
  • کانکتور M.2: یک عدد
  • نوع اسلات M.2: PCI-E 3.0 x4 , SATA 3.0
  • مجموع کانکتور فن: 2 عدد
  • کانکتورهای برق: کانکتور برق اصلی 24 پبن ATX , کانکتور برق 8 پین ATX , هدر برق فن پردازنده
  • دکمه‌ها، سوییچ‌ها و جامپرها: ۱ عدد Clear CMOS jumper
  • سایر توضیحات مربوط به اسلات‌ها: ۱ مسیر PCI Express x16 slot, running at x16 (PCIEX16),۱ مسیر PCI Express x1 slot (PCIEX1_1)
  • هدر USB 2.0: یک عدد
  • هدر USB 3.2: یک عدد
  • توضیحات تکمیلی هدرها: ۱ عدد CPU fan header,۱ عدد system fan header,۱ عدد RGB LED strip header,۱ عدد front panel header,۱ عدد front panel audio header,۱ عدد USB 3.2 Gen 1 header,۱ عدد USB 2.0/1.1 header,۱ عدد Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only),۱ عدد serial port header
  • توضیحات تکمیلی قسمت ذخیره سازی (Storage): ۱ عدد M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support),۴ عدد SATA 6Gb/s connectors

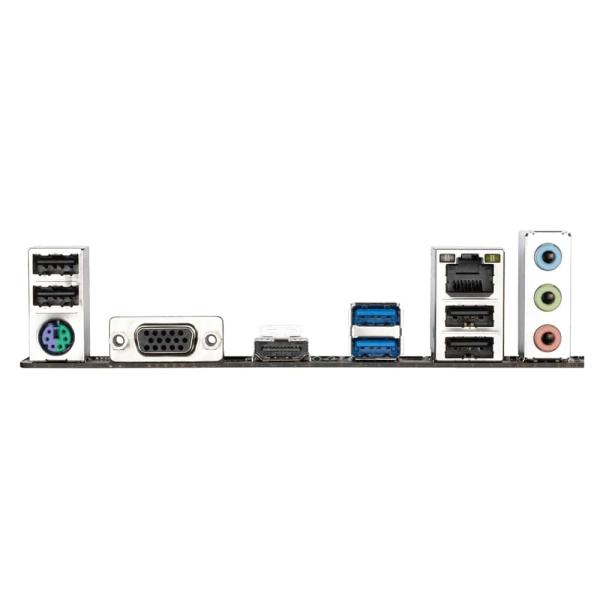

پنل پشتی

  • پورت PS/2: یک عدد کومبو
  • پورت USB 2.0: چهار عدد
  • پورت USB 3.2 Gen 1: دو عدد
  • پورت D-Sub: یک عدد
  • پورت LAN: یک عدد
  • کارت شبکه LAN: Realtek GbE LAN chip (1 Gbit/100 Mbit)
  • کارت صدا: Realtek Audio CODEC
  • جک 3.5 میلی‌متری: 3 عدد
  • توضیحات کارت صدا: High Definition Audio,2/4/5.1/7.1-channel
  • توضیحات تکمیلی پورت ها: ۱ عدد PS/2 keyboard/mouse port,۱ عدد D-Sub port,۱ عدد HDMI port,۲ عدد USB 3.2 Gen 1 ports,۴ عدد USB 2.0/1.1 ports,۱ عدد RJ-45 port,۳ عدد audio jacks

سایر مشخصات

  • مدیریت: WOL by PME, PXE
  • سایر توضیحات بایوس: ۱ عدد 256Mbit flash,Use of licensed AMI UEFI BIOS,PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
